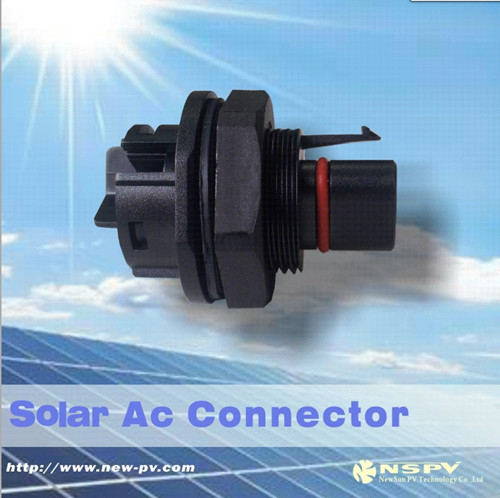

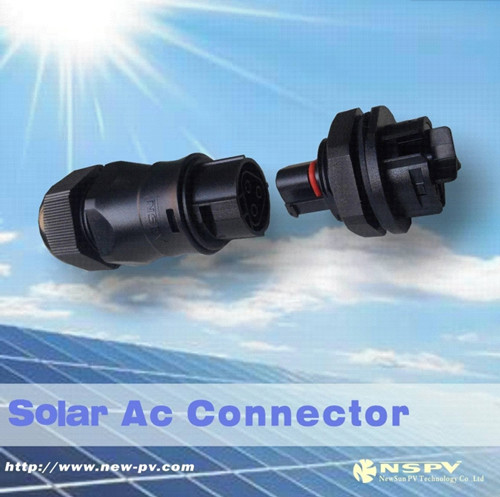

介绍：这款接头专门用于光伏逆变器上使用。

规格参数：

材料·······················PA

额定电流·····················35A

额定电压·····················500V AC

测试电压·····················4KV

接触阻抗·····················≤1 mΩ

绝缘阻抗·····················≥2000 mΩ

接触材料·····················铜，镀锡

防护等级·····················IP67

防火等级·····················UL94-V0

端子铆线方式···················螺丝锁压

端子直径/端子数量················ Φ2.6/3

适用温度范围···················-40℃ 至 +85℃

适用电缆·····················2.5~6.0 mm2

适用电缆最大外径·················Φ20mm

执行标准·····················UL2238/EN 61984
