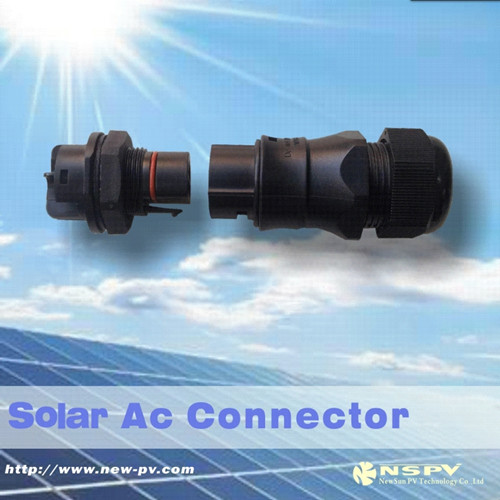

Introduction：This connector is especially used for Inverter.

Insulation material·····················PA

Rated current························Max.50A

Rated voltage························500V AC

Dielectric withstand voltage················ 4kV

Typical contact resistance················· ≤1 mΩ

Insulation resistance····················≥2000 mΩ

Contact material······················Copper,Tin plated

Degree of protection····················IP67

Flame class························ UL94-V0

Contaction type······················ Crimping & Screw

Contaction diameter/number of contact··········· Φ2.6*5

Ambient temperature range················· -40℃ until +85℃

Suitable cable cross sections··············· 2.5~6.0 mm2

Suitable cable OD Max.···················Φ20mm

Standard··························UL2238/EN 61984
