Solar Cable Assembly Connector

PV Solar 3/4/6 in 1 Assembly Connector

2In1

3In1

4In1

6In1

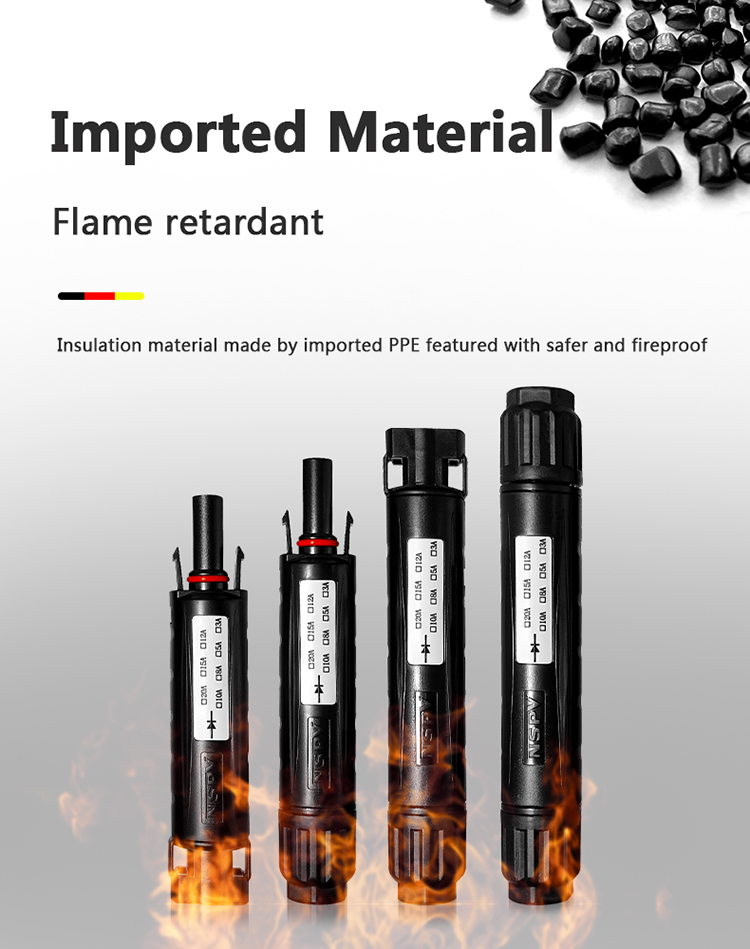

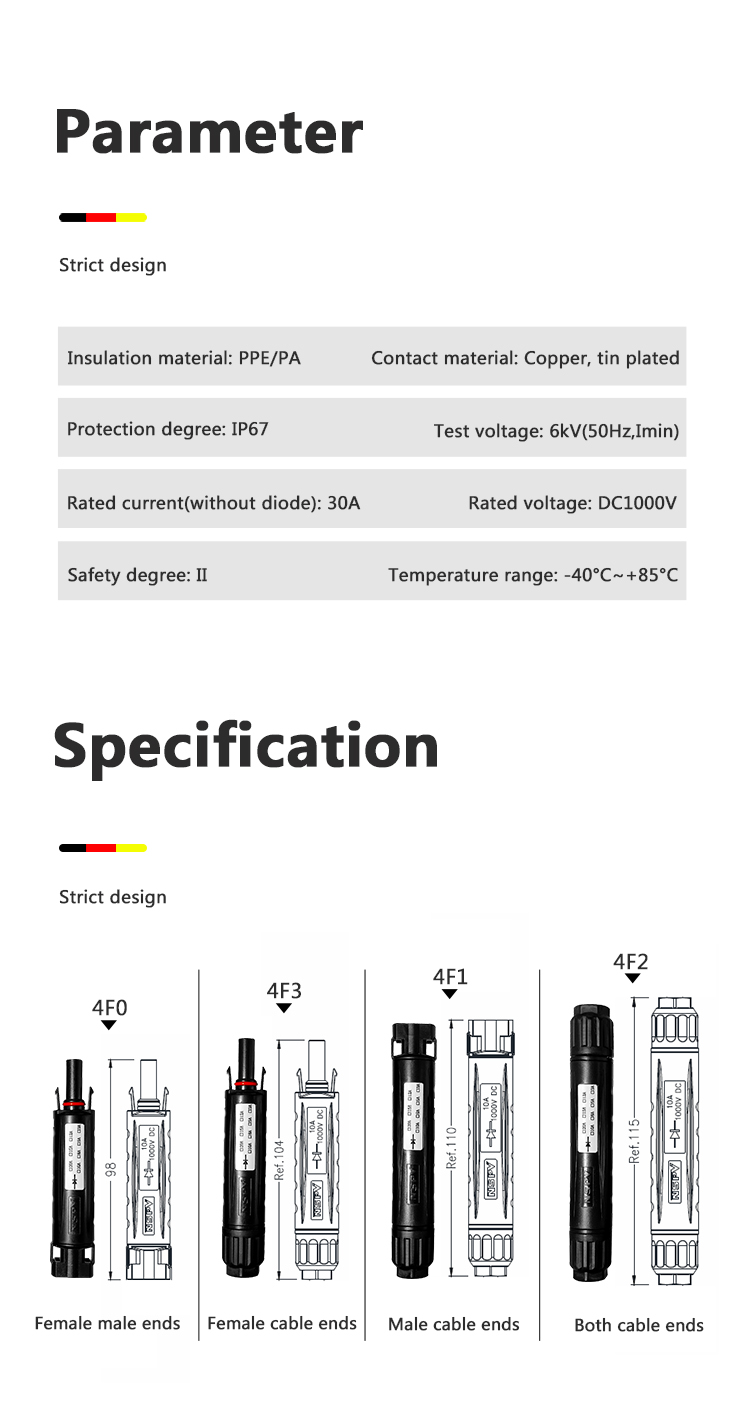

Insulation material PPE Flame class UL94-V0
Rated current 30A Material RTI 110degree
Rated voltage 1000VDC Insertion force =<50N
Test voltage 6kA(50Hz 1min.) Withfrawal force >=50N
Type contact resistance =<5mohm Ambient temperature range -40~90degree
Contact material Copper,Tin plated Pin dimensions OD.4.0

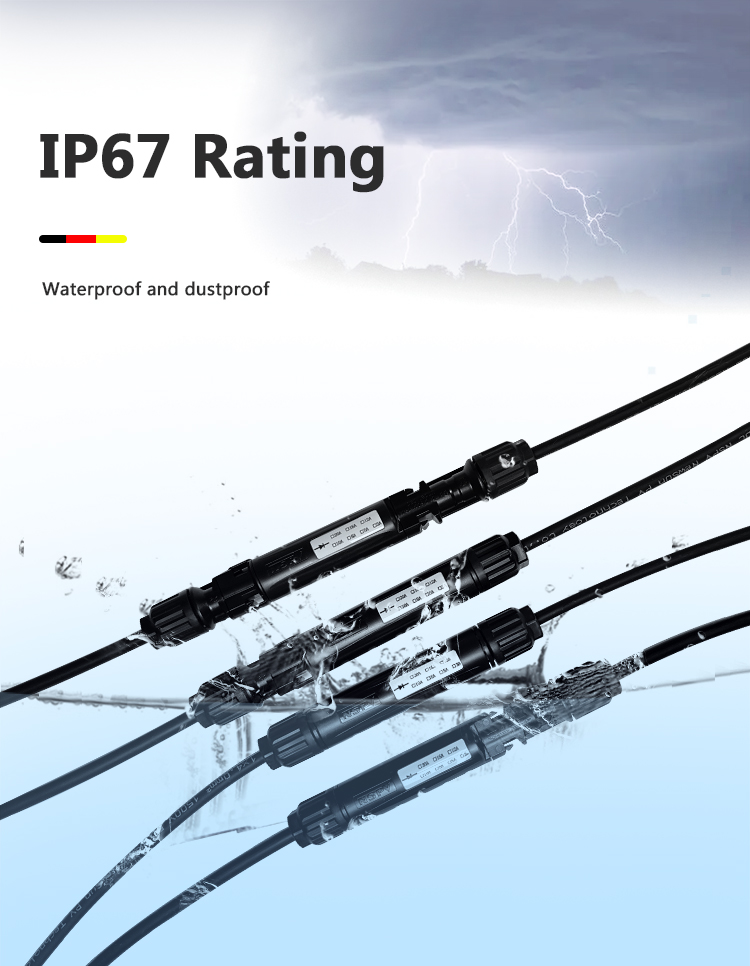

Degree of protection IP67 Suitable cable cross section 2.5~6mm2
Safety degree II Lock nut force 1.5~2.0Nm





PV Solar 4 in 2 Assembly Connector

Insulation material PPE Flame class UL94-V0
Rated current 30A Material RTI 110degree
Rated voltage 1000VDC Insertion force =<50N
Test voltage 6kA(50Hz 1min.) Withfrawal force >=50N
Type contact resistance =<5mohm Ambient temperature range -40~90degree
Contact material Copper,Tin plated Pin dimensions OD.4.0
Degree of protection IP67 Suitable cable cross section 2.5~6mm2
Safety degree II Lock nut force 1.5~2.0Nm
Pin dimensions...........................................................3.0





PV Solar 6 in 2 Assembly Connector



Insulation material PPE Flame class UL94-V0
Rated current 30A Material RTI 110degree
Rated voltage 1000VDC Insertion force =<50N
Test voltage 6kA(50Hz 1min.) Withfrawal force >=50N
Type contact resistance =<5mohm Ambient temperature range -40~90degree
Contact material Copper,Tin plated Pin dimensions OD.4.0
Degree of protection IP67 Suitable cable cross section 2.5~6mm2
Safety degree II Lock nut force 1.5~2.0Nm
