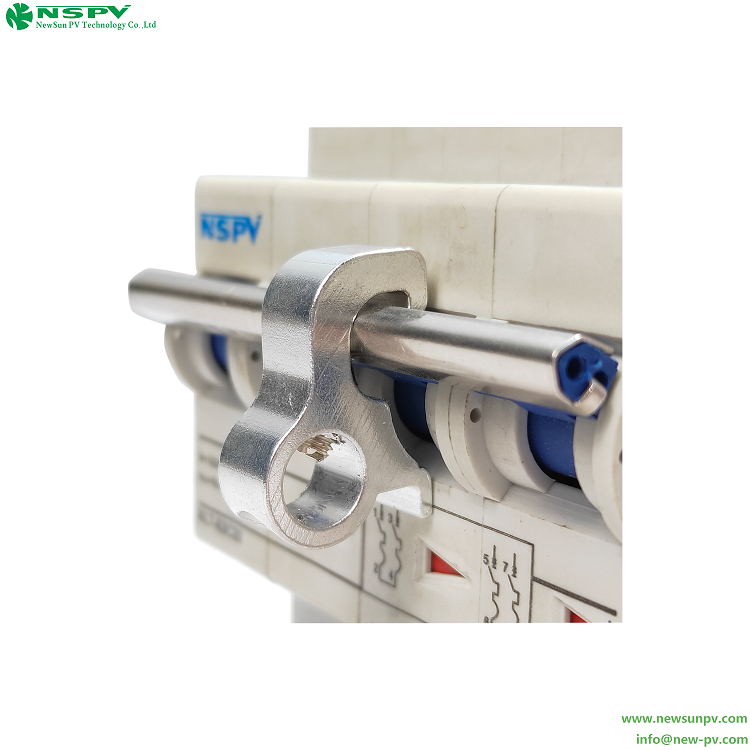

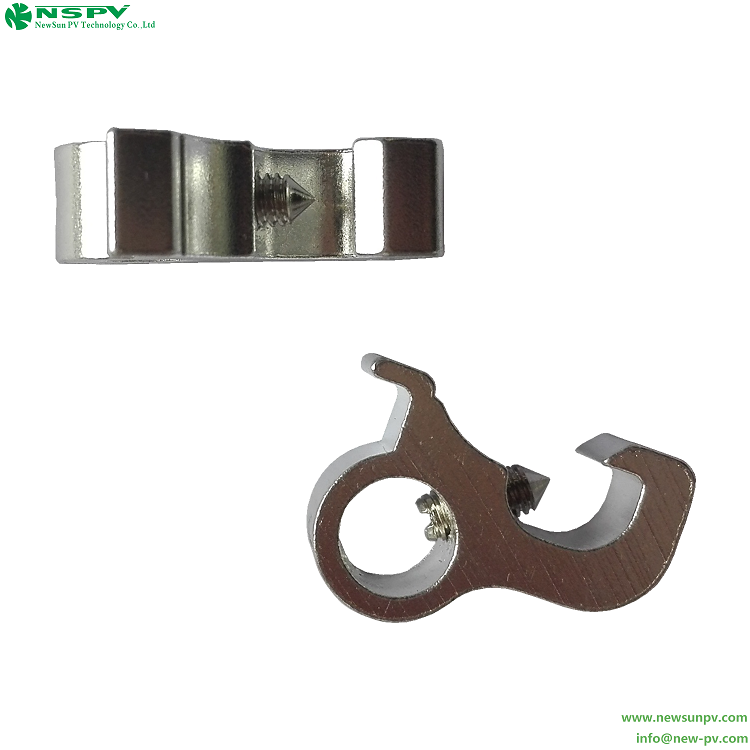

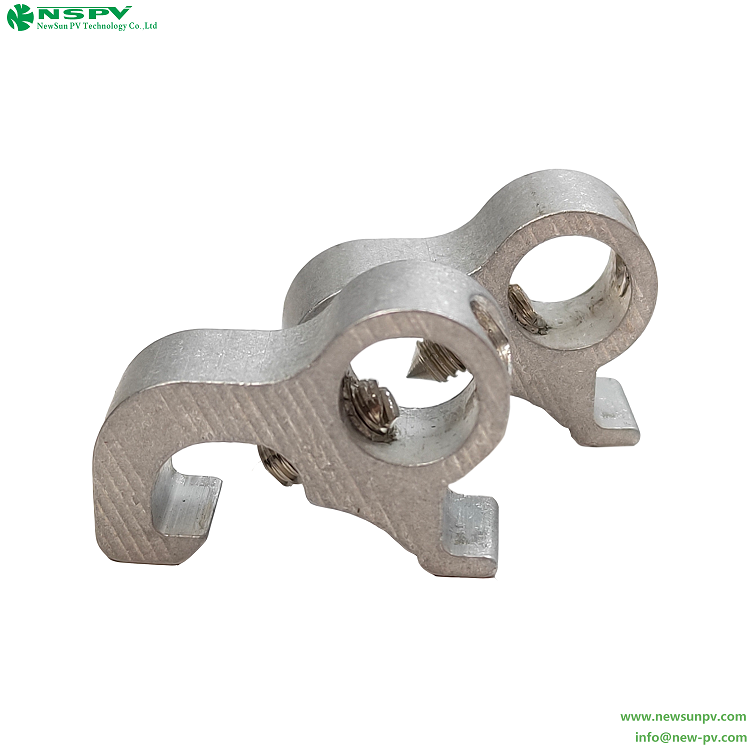

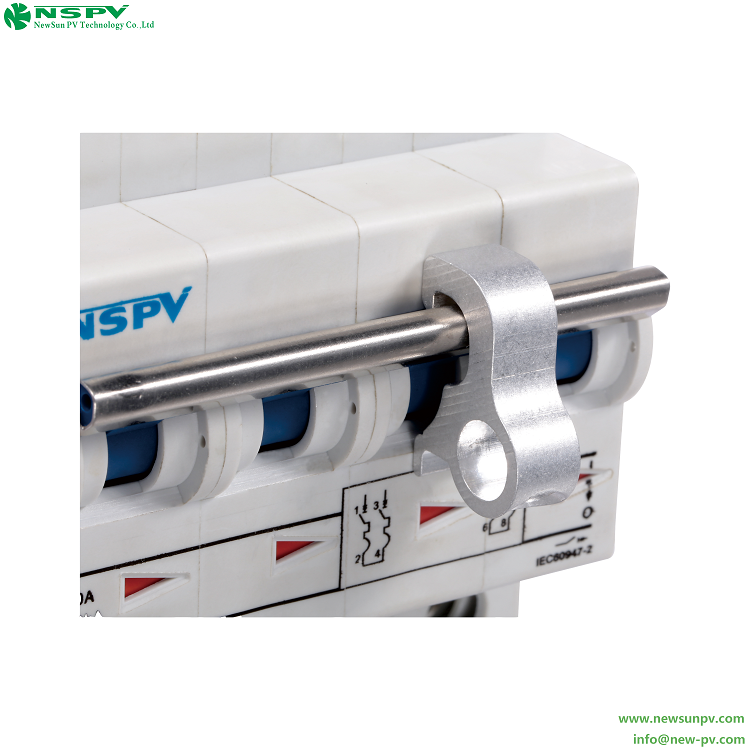

MCB Lockout

Product Name: Lock dogs; Toggle lock; MCB lockout

Material: Aluminum alloy, high tension.

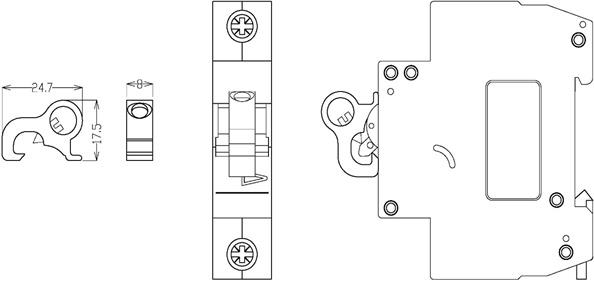

Drawing:


Package:100PCS/bag

Package Weight: 0.48kg (0.99lb.)

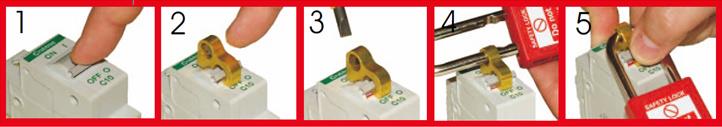

Application Method(Referenct photo):

a. Place circuit breaker in the OFF position (figure 1).

b. Place the Lockout over the circuit breaker toggle as shown (figure 2).

c. Using a small screwdriver, tighten the internal grub screw securing the Lockout onto the toggle (figure 3).

d. Place a lockout padlock through the hole as shown (figure 4).

f. Verify that the circuit breaker toggle is securely fastened and cannot be switched on (figure 5).
